Although contemporary commercial airplanes may appear similar at first glance, the unmistakable silhouette of the Boeing 747 stands out distinctly. The prominent hump housing both the flight deck and an upper-level cabin space located forward of the wings sets this craft apart from all others. However, what is the rationale behind this design choice? Is there a functional reason for it beyond enhancing the luxury experience for premium passengers?
The 747 boasts a prestigious status as the “Queen of the Skies,” having been operated by airlines ranging from Pan Am to various others.
Iron Maiden (up until the point when the band cut up their airplane for keepsakes)
. The
contentious present from Qatar to President Donald Trump
It’s also a 747. However, when it comes to its distinct hump, the explanation points to a much more mundane reason: carrying freight.

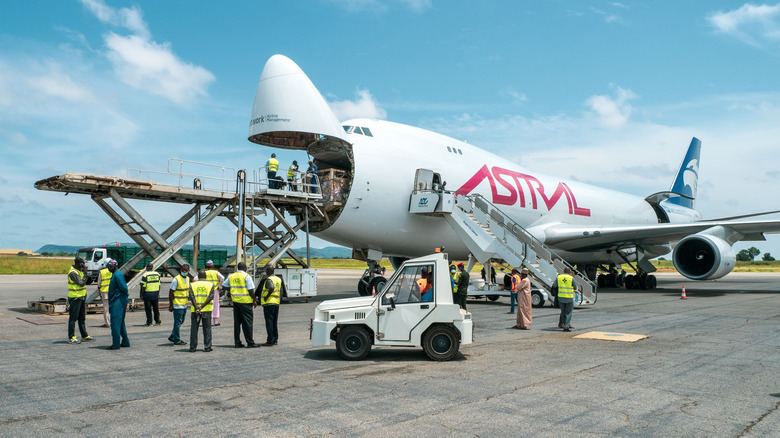

For the cargo variant, an upward-opening nose door was necessary to facilitate straightforward loading and unloading processes. However, this introduced a challenge as the cockpit had to remain at the front so that pilots could clearly see their direction. To address this issue, Boeing opted to position the cockpit atop the primary body instead of inside it. By doing so, they circumvented complications related to routing the intricate electrical systems and control mechanisms of the 747 through the movable portion. Additionally, this arrangement prevented items belonging to the flight personnel from sliding around whenever the cargo entryway was open.
Read more:
What Is the Earnings Potential for Auto Salespersons? Unveiling Their Compensation Structure
A Backup Plan
Now, looking back clearly, we understand how the Boeing 747 transformed air transportation. However, this wasn’t at all certain during its conceptual phase around the mid-1960s. At that time, Boeing was more optimistic about another aircraft: the supersonic 2707, designed as competition against the Concorde. The Concorde along with the 2707 aimed to transform commercial flights using supersonic velocities, pushing the 747 jumbo jet towards slower freight operations instead.
The CEO of Pan Am, Juan Trippe, had faith in both the Boeing 747 and the potential of supersonic travel for passengers. He agreed to purchase 25 Boeing 747 aircraft for the company, provided that these planes could be readily adapted between passenger and freight operations should supersonic flights become popular and conventional passenger services decline. By doing this, he ensured that his considerable expenditure on the 747 fleet wouldn’t turn into an unutilized asset.
The simplest approach to achieve this was to relocate the cockpit to the second tier of the airplane, thereby freeing up the bottom section for a complete-height cargo entrance that would lift upward upon opening. This configuration had been considered previously within a discarded military transport aircraft concept merely a couple of years prior; however, Boeing can now effectively utilize it. Additionally, the elevated cockpit stayed intact in the commercial variants of the 747 model too, facilitating simpler transformations into freighters—a necessity highlighted by Pan Am’s request. Interestingly enough, though, Boeing doesn’t engage in converting current passenger models directly into cargo carriers even though such modifications were initially stipulated during the design phase.
The Hump Enlarges
Although the cockpit was the sole section necessitated above the cargo door, aerodynamic principles mandated the distinctive teardrop form trailing it, which seamlessly merged with the primary aircraft body. Designing just the cockpit to protrude over the remainder of the fuselage would have resulted in excessive air resistance; hence, the region after it was shaped gradually backward into the airplane’s structure. This generated the recognizable teardrop profile we cherish nowadays. Drawing ideas from the 377 Stratocruiser from the 1940s, Boeing transformed this space into a bar and lounge initially. As time progressed and demands rose, this area was substituted with extra passenger seats, frequently for first-class travelers.
Initially, Boeing introduced the distinctive upper deck as an aerodynamic enhancement. However, after recognizing the potential utility of the additional internal volume, they explored extending the hump beyond just the forward area to span across the wings and center fuselage in subsequent designs. For the 747SP—a less common model featuring a shortened body designed for long-distance travel—Boeing faced the challenge of integrating the hump seamlessly between the nose section and the main wing structure at the center of the aircraft. This necessitated some redesign work since standard versions confine the hump strictly within the front part of the plane.
After completing this process, Boeing applied similar methods to extend the hump on regular models beginning with the 747-300 series. These modifications carried over to subsequent versions such as the 747-400 and onward, refining the 747’s distinctive silhouette into its current form which we cherish today.
The Queen of the Skies might be stepping down.
However, she will always be warmly remembered for her role in aviation history.
